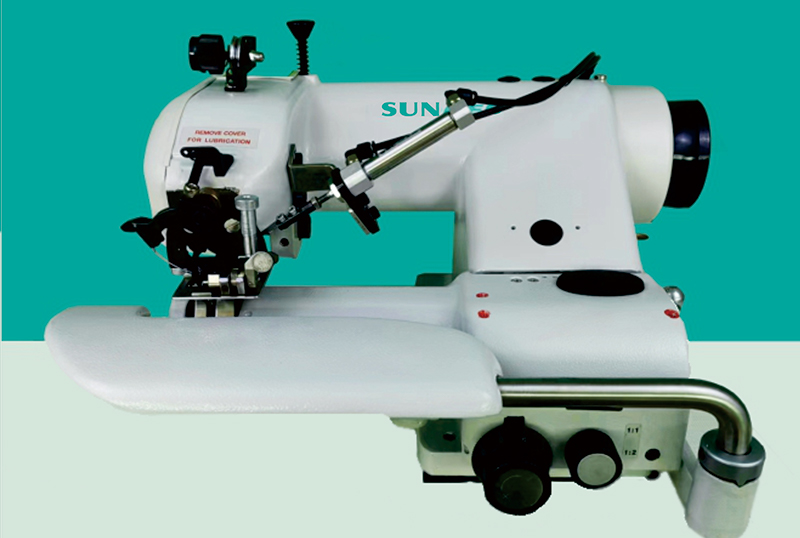

STR100-2W
Single Thread Blind Stitch Machine
Designed for medium-thickness suit and fashion garments, especially for felling waistband linings with precise blind stitch control.
Need a Blind Stitch Machine for Waistband Linings?
Every production line is unique. Whether you need special attachments, custom configurations, OEM manufacturing, or application-specific solutions, SUNMA's engineering team is ready to help.
Request a Custom SolutionTypical Applications
Suit Trousers
Fashion Dresses
Waistband Linings
Medium-Thickness Garments
Key Features
Vast Arm Clearance
Allows comfortable sewing even on seam areas that are difficult to access.
High Precision Sewing
Sewing kinematics remain stable on elastic, ultrafine and medium-thickness materials.
High Productivity
Runs at up to 3000 stitches per minute while keeping seams straight at high speed.
Flexible Waistband Construction
Supports seam placement at the edge of the waistband lining or on top of the waistband seam.
Special Design for Waistband Lining
- Made specifically for felling waistband linings in trousers and tailored garments.
- Seam can be positioned at the edge for American style or on top of the waistband seam for European style.
- Spring loaded plunger helps size up belt loops, cross seams, waist pleats and pocket bags.
- Built on the modular STR100 platform for later configuration changes.
Specifications
| Item | Specification |
|---|---|
| Max Sewing Speed | 3000 r/min |
| Stitch Length | 5.0-8.0 mm |
| Top Feed | Saw Toothing |
| Needle Plate Opening | 7.0 mm |
| Stitch Depth Display | Digital Optional |
| Skip Stitch with Depth Regulation | 1:2 |
| Needle System | GROZ-BECKERT 1669 |
| Air Pressure | 6 bar |
