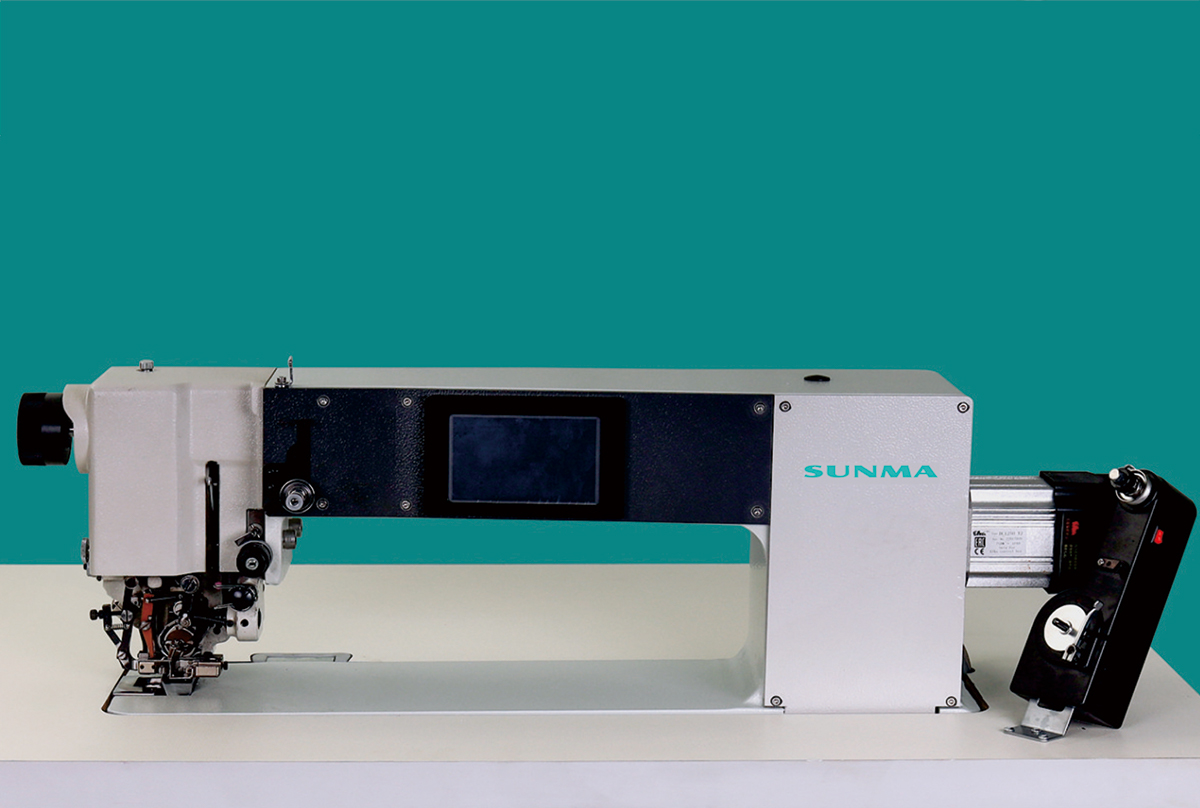

STR710
Two Thread Blind Stitch Sewing Machine for Lining Felling of Jackets / Coats
A modular two-thread blind stitch platform for jacket and coat lining felling, with large free space, quiet running and parameter-based control.
Need a Two Thread Blind Stitch Machine for Jacket Linings?
Every production line is unique. Whether you need special attachments, custom configurations, OEM manufacturing, or application-specific solutions, SUNMA's engineering team is ready to help.
Request a Custom SolutionTypical Applications
Jacket Linings
Coat Linings
Half-Lined Hems
Tailored Outerwear
Key Features
Lining Felling Focus
Designed for lining felling on jackets and coats, with optional use for half-lined hems.
LCD Parameter Control
Touch controls adjust stitch depth and sewing speed with parameter storage.
Large Free Space
A 450 x 150 mm free space supports easier handling of bulkier garment sections.
Quiet Running
New bearings and head cover design reduce running noise during production.
Special Design for Jacket and Coat Lining Felling
- Purpose-built for lining felling on jackets and coats.
- Modular design supports controlled setup through LCD-based operation.
- Large arm free space improves operator access around garment sections.
- Standard equipment includes initial and end backtack, electronic winder, LED lamp and thread stand.
Specifications
| Item | Specification |
|---|---|
| Max Sewing Speed | 1300 r/min |
| Stitch Length | 3.0-6.0 mm |
| Needle System | GROZ-BECKERT 1828 E |
| Stitch Plate Opening | 7.0 mm |
| Initial Backtack | Program Selection |
| End Backtack | Program Selection |
| Arm Free Space | 450 x 150 mm |
| Voltage | 220V/50-60Hz |
| Air Pressure | 0.6 Mpa |
| Average Air Consumption | 30 L/h |
