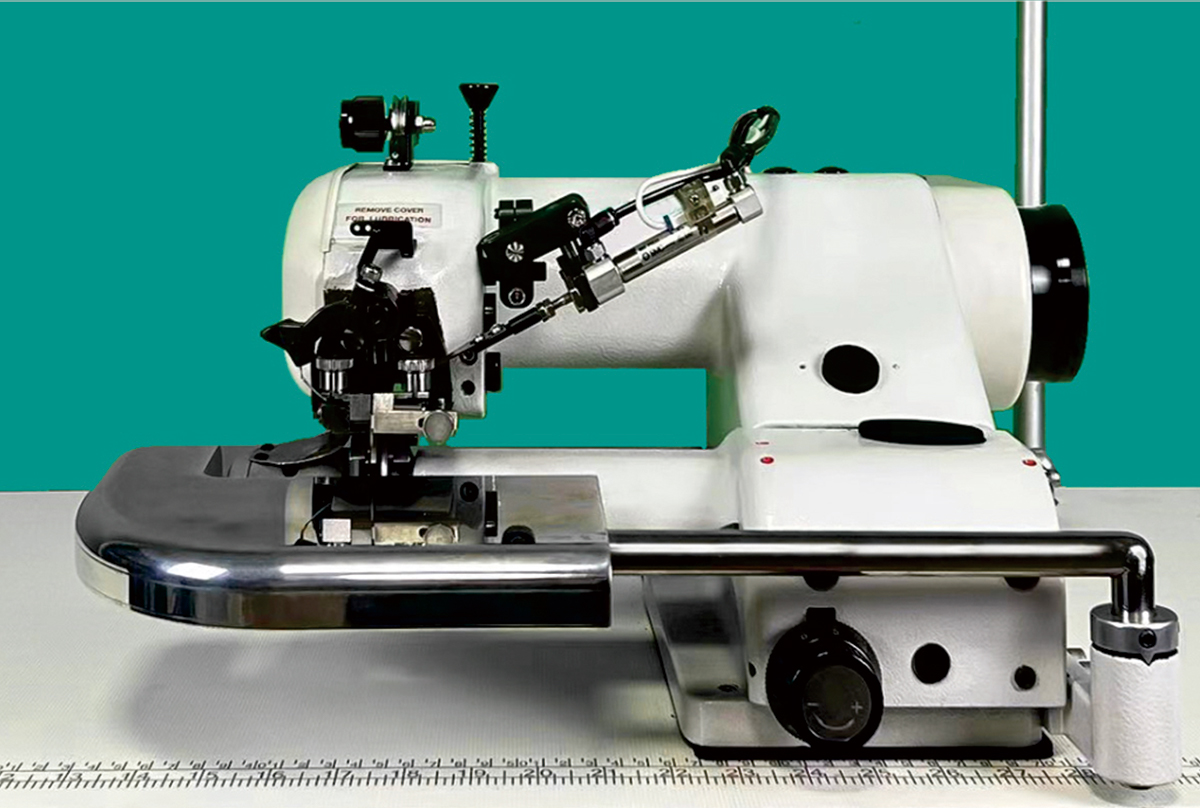

STR200-2
Single Thread Double Blind Stitch Machine
Designed for dresses, skirts and trousers, creating a refined loose cross-stitch seam hidden between fabric layers on fine to medium materials.
Need a Double Blind Stitch Machine for Dresses and Skirts?
Every production line is unique. Whether you need special attachments, custom configurations, OEM manufacturing, or application-specific solutions, SUNMA's engineering team is ready to help.
Request a Custom SolutionTypical Applications
Dresses
Skirts
Trousers
Fine to Medium Fabrics
Key Features
Loose Cross Stitch
Forms a hidden bluff-edge blind stitch seam between the hem's fabric layers.
Alternating Needle Penetration
Alternating needle penetration helps create an even loose cross stitch.
Tailor-Made Appearance
The finished seam has the refined look of a hand-tailored seam.
Fabric Versatility
Designed for demanding woven and knitted fabrics from fine to medium quality.
Special Design for Double Blind Hemming
- Suitable for hemming dresses, skirts and trousers made of light woven and knitted materials.
- Creates a hidden blind stitch seam between layers rather than on the outside surface.
- Loose cross-stitch structure improves seam elegance and softness.
- Made for demanding garment quality where appearance matters.
Specifications
| Item | Specification |
|---|---|
| Max Sewing Speed | 3000 r/min |
| Stitch Length | 5.0-8.0 mm |
| Top Feed | Pyramid Toothing |
| Needle Plate Opening | 9.5 mm |
| Stitch Depth Display | Digital Optional |
| Skip Stitch with Depth Regulation | 1:2 |
| Needle System | GROZ-BECKERT 1669 |
| Air Pressure | 6 bar |
