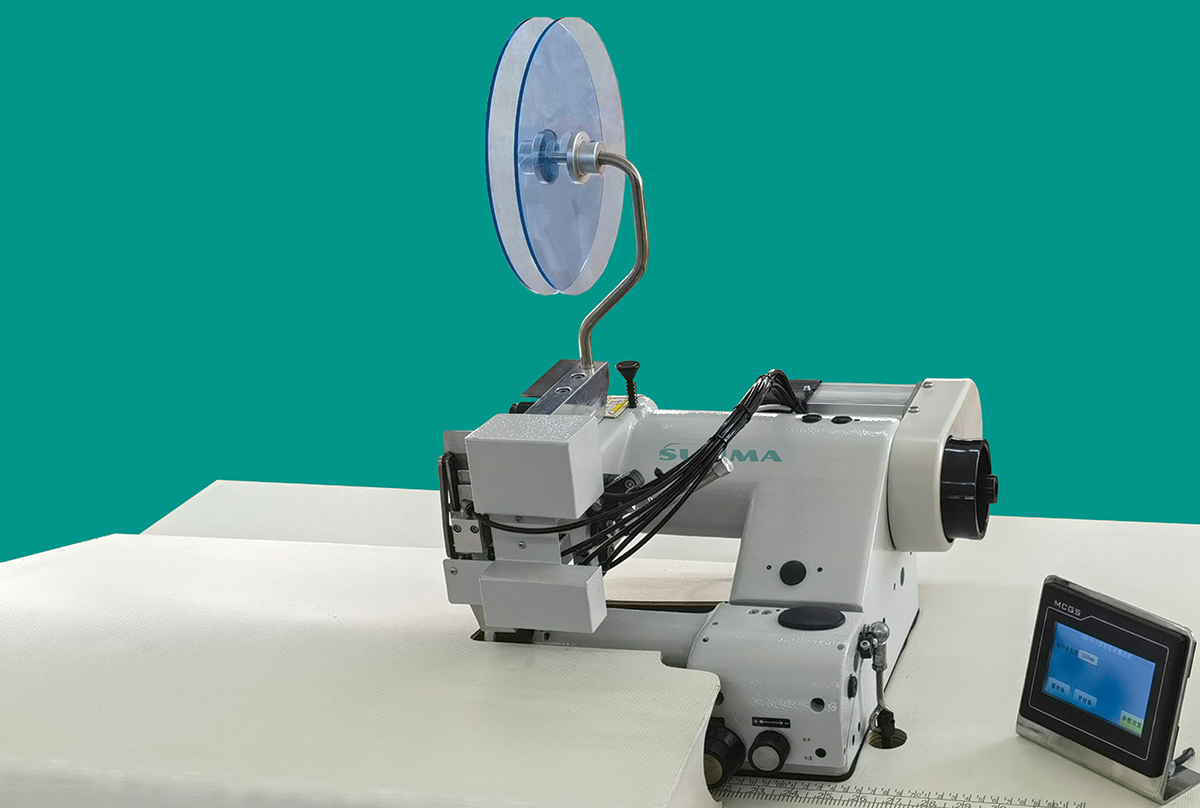

STR100-6
Single Thread Blind Stitch Machine for Fusible Interlining Tapes
Designed to attach one-side-coated fusible interlining tapes to jacket fronts and facings with stable feeding and high daily efficiency.
Need a Blind Stitch Machine for Fusible Interlining Tapes?
Every production line is unique. Whether you need special attachments, custom configurations, OEM manufacturing, or application-specific solutions, SUNMA's engineering team is ready to help.
Request a Custom SolutionTypical Applications
Jacket Fronts
Facings
Fusible Interlining Tapes
Tailored Jackets
Key Features
Adjustable Tape Width
Handles fusible interlining tapes from 15 to 25 mm while keeping the seam centered.
High Daily Output
Supports efficient production with a daily capacity of roughly 850 to 1200 jackets.
Automatic Tape Feeding
Equipped with an automatic tape feeding device for stable material handling.
Integrated Finishing Functions
Includes a tape cutter, thread trimmer and preset seam-length capability.
Special Design for Fusible Interlining Tapes
- Built for attaching one-side-coated fusible interlining tapes to jacket fronts or facings.
- Feeding device is adjustable so different tape widths stay centered in the seam.
- Combines high product quality with high production efficiency.
- Integrated cutting and trimming functions reduce manual handling during production.
Specifications
| Item | Specification |
|---|---|
| Max Sewing Speed | 3000 r/min |
| Stitch Length | 5.0-8.0 mm |
| Top Feed | Saw Toothing |
| Needle System | GROZ-BECKERT 1669 |
| Stitch Plate Opening | 6.0 mm |
| Skip Stitch with Depth Regulation | 1:2 |
| Tape Width | 15-25 mm |
| Voltage | 220V/50-60Hz |
| Air Pressure | 0.6 Mpa |
| Average Air Consumption | 40 L/h |
